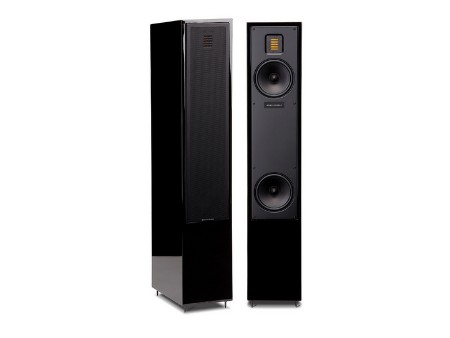

Motion 20
|
|
|
|
|
|
Frequency Response
|
46–25,000 Hz ±3dB
|
|
|
|
Dispersion
|
80° x 80°
|
|
|
|
Sensitivity
|
90 db/2.83 volts/meter
|
|
|
|
Nominal Impedance
|
4 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers.
|
|
|
|
Recommended Amplifier Power
|
20-200 watts per channel
|
|
|
|
|
Crossover Frequency
|
500 & 2,600 Hz
|
|
|
|
|
Crossover Components
|
Precision Vojtko™ with custom air core coil and low DCR steel laminate inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel
|
|
|
|
|
High Frequency Transducer
|
1" × 1.4" (2.6cm × 3.6cm) Folded Motion Transducer with 5.25" × 1.75" (13.3cm × 4.4cm) diaphragm
|
|
|
|
|
Mid Frequency Driver
|
—
|
|
|
|
|
Low Frequency Driver
|
Two 5.5" (14cm) aluminum cone woofers in a non-resonant asymmetrical chamber format. Cast polymer basket. Rigid structured dust caps reduce cone break-up.
|
|
|
|
|
Binding Posts
|
Custom 5-way bi-wire tool-less binding posts
|
|
|
|
|
Spikes
|
Included MiniETC™ Spikes
|
|
|
|
|
Weight
|
37lbs. (16.8kg) each
|
|
|
|
|
Overall Dimensions
(HxWxD)
|
36.6 x 6.8 x 11.7 (92.9cm x 17.3cm x 29.7cm)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
