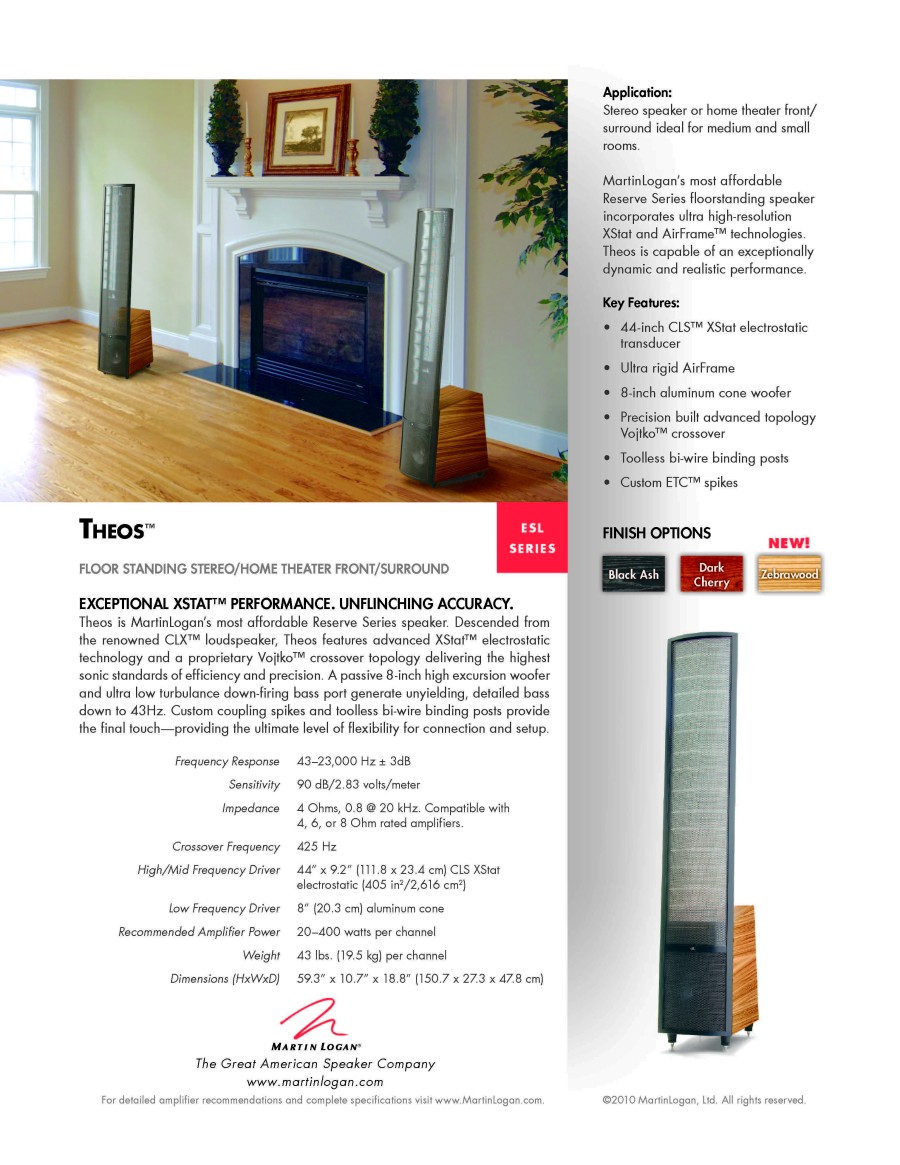

THEOS
Frequency Response
|
43–23,000 Hz ±3dB
|
|
Horizontal Dispersion
|
30°
|
|
Vertical Dispersion
|
44" (112cm) line source
|
|
High Frequency Transducer
|
XStat™ CLS™ electrostatic transducer
|
|
» Panel Dimensions
|
44" × 9.2" (111.8 × 23.4cm)
|
|
» Radiating Area
|
405 in2 (2,616 cm2)
|
|
Low Frequency Transducer
|
8" (20.3cm) cast basket, high excursion, aluminum cone with extended throw drive assembly, non-resonance asymmetrical chamber format, down-firing bass reflex port.
|
|
Sensitivity
|
90 dB/2.83 volts/meter
|
|
Impedance
|
4 Ohms, 0.8 at 20kHz. Compatible with 4, 6, or 8 Ohm rated amplifiers.
|
|
Recommended Amplifier Power
|
20‒400 watts per channel
|
|
Crossover Frequency
|
425Hz
|
|
Components
|
Custom-wound E-I core transformer, air core coils, polypropylene capacitors.
|
|
Inputs
|
Custom 5-way bi-wire tool-less binding posts
|
|
Power Draw
|
Idle: < 1W/channel
Max: 2W/channel
|
|
Weight
|
43 lbs. (19.5 kg)
|
|
Dimensions
|
59.3" × 10.7" × 18.8"
(150.7cm × 27.3cm × 47.8cm)
|
