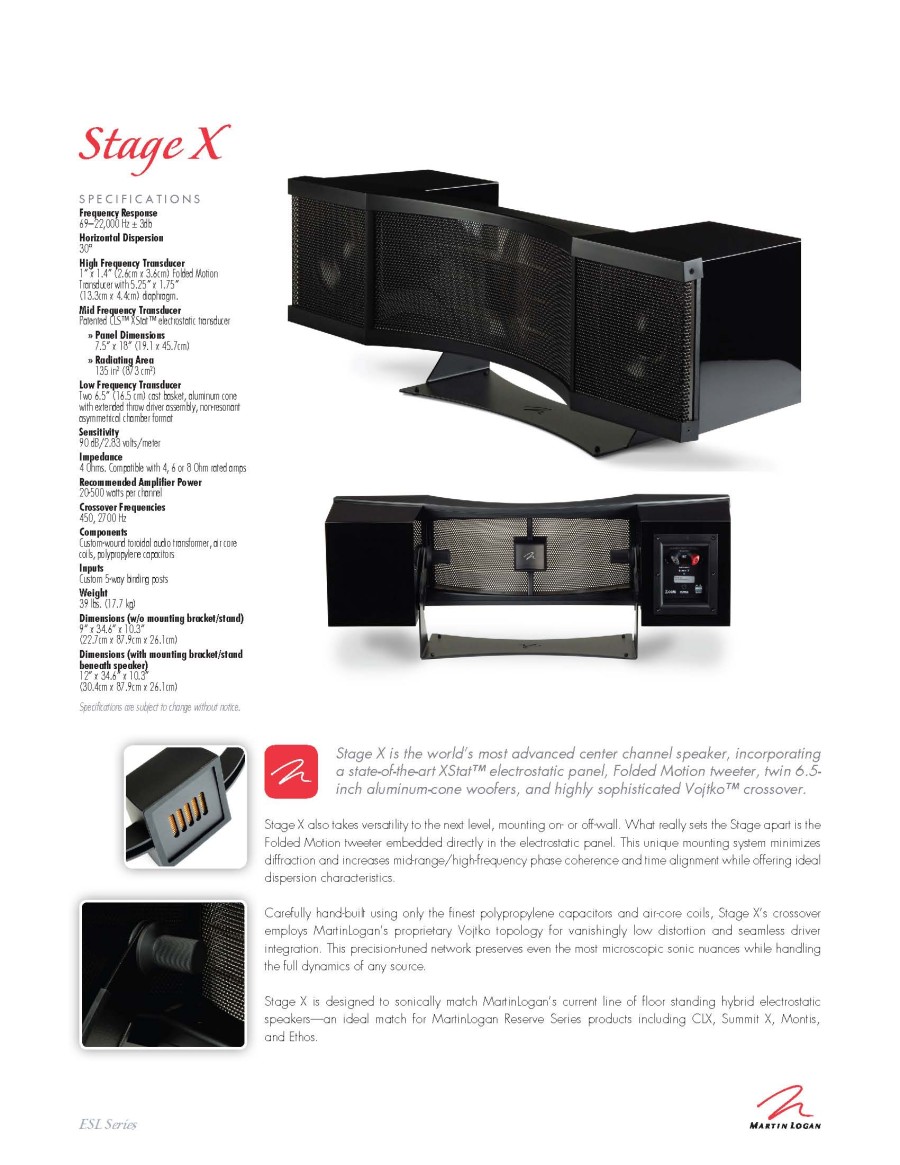

| STAGE X Frequency Response | 69–22,000 Hz ±3dB |
| Horizontal Dispersion | 30° |
| High Frequency Transducer | One 1" x 1.4" (2.6cm x 3.6cm) Folded Motion Transducer with 5.25" x 1.75" (13.3cm x 4.4cm) diaphragm. |
| Mid Frequency Transducer | Patented CLS™ XStat™ electrostatic transducer |
| » Panel Dimensions | 7.5" × 18" (19.1 × 45.7cm) |
| » Radiating Area | 135 in2 (873 cm2) |
| Low Frequency Transducer | Two 6.5" (16.5 cm) cast basket, aluminum cone with extended throw driver assembly, non-resonant asymmetrical chamber format |
| Sensitivity | 90 dB/2.83 volts/meter |
| Impedance | 4 Ohms . Compatible with 4, 6, or 8 Ohm rated amplifiers. |
| Recommended Amplifier Power | 20‒500 watts per channel |
| Crossover Frequency | 450, 2700 Hz |
| Components | Custom-wound toroidal audio transformer, air core coils, polypropylene capacitors |
| Inputs | Custom 5-way binding posts |
| Weight | 39 lbs. (17.7 kg) |
| Dimensions (without mounting bracket/stand) | 9" × 34.6" × 10.3"
(22.7cm × 87.9cm × 26.1cm) |
| Dimensions (mounting bracket/stand beneath speaker) | 12" × 34.6" × 10.3"
(30.4cm × 87.9cm × 26.1cm) |
