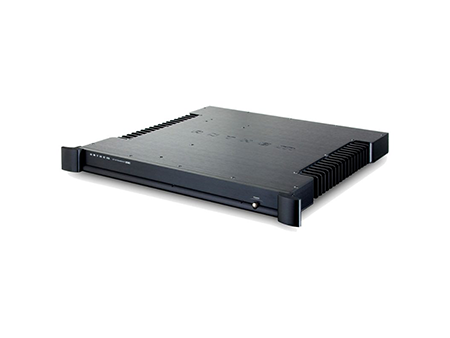

M1 後級擴大機
Anthem M1單聲道後級，在對應8歐姆負載下，可以輸出1000W的功率，當負載阻抗降到4歐姆，輸出功率就倍增到2000W。而且，在高輸出功率下，還能維持低失真，這就更不容易。
 |
 |
 |
實售價 NT $250,000.元
保固一年
加拿大原廠製造
M1 Specifications
Power Output continuous, 20 Hz to 20 kHz, <0.1% THD+N 8 Ω 1000 W 4 Ω 2200 W 3 Ω 2400 W 2 Ω >2000 W depending on line voltage regulation With 120V AC supply the amplifier’s maximum output into impedances 4 Ω and lower, as well as its maximum duration, vary depending on line voltage regulation. Frequency Response 20 Hz to 20 kHz Open circuit +/- 0.1 dB 8 Ω +/- 0.1 dB 4 Ω +/- 0.1 dB 2 Ω +/- 0.2 dB Power Bandwidth 1000 W at 8 Ω 5 Hz to 45 kHz THD+N at 1 kHz, 8 Ω 1 W 0.01 % 10 W 0.01 % 100 W <0.03 % 1000 W <0.06 % IMD 19 kHz + 20 kHz, CCIF 0.003% S/N Ratio ref. 1000 W, IEC-A 113 dB Voltage Gain 29 dB Input Sensitivity 100 mV for 1 W output, 3.2 V for 1000 W output (8 Ω) Input Impedance 10 kΩ (RCA), 20 kΩ (XLR) Damping Factor 800 to 1400 depending on frequency XLR Configuration Pin 1: Ground, Pin 2: Positive, Pin 3: Negative POWER REQUIREMENTS <1 W Consumption in a typical music/theater installation <2 W standby mode, 120V mains 33 W standby mode, 240V mains 300 W operate mode, idle typical operation Where mains voltage is 120V, one dedicated 15A circuit per amplifier is recommended depending on speaker. A 20A circuit is adequate for two amplifiers playing music where speaker impedance is 8 Ω. This product operates from a single phase AC power source that supplies between 108V and 264V at a frequency of 50 or 60 Hz. DIMENSIONS Height with feet 2 1/4 inches (5.7 cm) Height without feet 1 rack unit Width standard handles 19 1/4 inches (49 cm) Width rackmount handles 19 inches (48.3 cm) Depth 18 3/4 inches (47.6 cm) Weight (unpacked) 20 lb (9 kg)
