Anthem後級擴大機

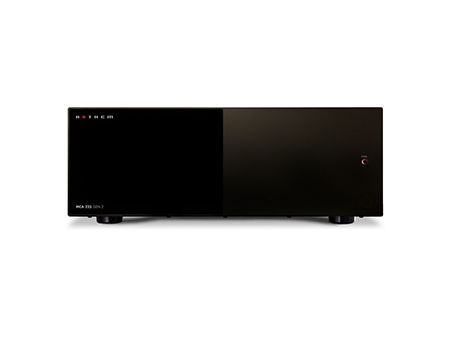

MCA225 V2 G2後級擴大機
◆ 2聲道、225W(8Ω) ◆ 負載監控 ◆ 加拿大原裝
實售價 NT  $135,000.
保固一年
加拿大原廠製造
  • MCA 225 GEN 2 Specifications

    POWER OUTPUT (PER CHANNEL)
    (Continuous RMS, 20 Hz - 20 kHz, <1% THD)
    Impedance
      225 W 400 W 600 W
    INPUTS / OUTPUTS
    Inputs Single-Ended, Balanced, Relay Trigger (3.5-mm Mono Jack)
    Outputs Speaker Binding Posts, Relay Trigger (3.5-mm Mono Jack)
    SWITCHES
    Front Panel Power (On/Off)
    Rear Panel 3 On/Off Modes (Trigger, Manual, Auto)
    THD AT 100W
    at 1 kHz 0.0010%
    at 20 kHz 0.015%
    IMD AT 100 W
    ITU-R (19 kHz + 20 kHz) 0.0005%
    SMPTE (60 Hz + 7 kHz) 0.002%
    FREQUENCY RESPONSE, 20 HZ TO 20 KHZ
    open circuit ± 0.1 dB
    ± 0.1 dB
    ± 0.1 dB
    ± 0.2 dB
    OTHER SPECIFICATIONS
    SNR, IEC-A, ref. 225 W 120 dB
    Power Bandwidth, -3 dB at 200 W into 8 ohms 90 kHz
    Slew Rate 30 V/μs
    Damping Factor, 20 Hz to 1 kHz 300
    Channel Separation, 100 Hz to 10 kHz >65 dB
    Input Impedance (RCA / XLR) 10 kΩ / 15 kΩ
    Input Sensitivity, 225 W into 8 Ω 1.5 Vrms
    Voltage Gain 29 dB
    POWER CONSUMPTION
      standby idle typical high output
    MCA 525 (Gen. 2) 2.0 W 80 W 550 W 1200 W
    MCA 325 (Gen. 2) 1.4 W 47 W 350 W 750 W
    MCA 225 (Gen. 2) 1.0 W 35 W 240 W 500 W
    DIMENSIONS
    Height 6-5/8” (16.9 cm)
    Height with Rackmount Kit 4U
    Width 17-1/4" (43.9 cm)
    Depth 18-1/8" (46 cm)
    WEIGHT
    MCA 525 (Gen. 2) 61 lb (27.5 kg)
    MCA 325 (Gen. 2) 43 lb (19.5 kg)
    MCA 225 (Gen. 2) 40 lb (18 kg)
    POWER REQUIREMENT
    120 V version: In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.
    220-240 V version: In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.
