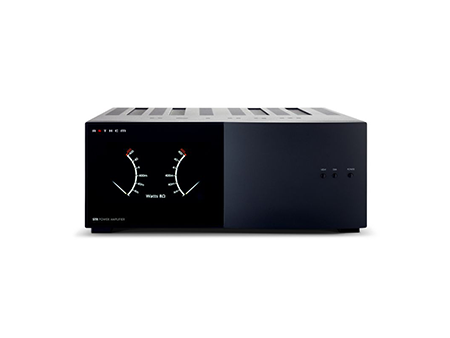

POWER AMPLIFIER

* Maximum 3 seconds due to high current draw.THD (400 W)0.0007% (1 kHz), 0.004% (20 kHz)IMD (300 W) ITU-R (19 kHz + 20 kHz)0.0006%SMPTE (60 Hz + 7 kHz)0.0016%SNR (IEC-A, ref. 400 W)121 dBFrequency Response (20 Hz - 20 kHz)± 0.1 dBPower Bandwidth (-3 dB at 400 W into 8 ohms)91 kHzSlew Rate30 V/μsDamping Factor (20 Hz - 1 kHz)360Channel Separation101 dB (100 Hz), 98 dB (10 kHz)Input Impedance10kΩ (RCA), 15kΩ (XLR)Input Sensitivity (for 400W into 8Ω)2.1 VrmsVoltage Gain29 dBPOWER REQUIREMENT120 V version:In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.220-240 V version:In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.POWER CONSUMPTIONStandby310 mWIdle65 WTypical Playback Levels150 W - 300 WHigh Playback Levels600 W - 1100 WDIMENSIONSHeight6-3/4” (17.2 cm)Width17” (43.2 cm)Depth (not including power cord)18-1/2” (47 cm)Weight (unpacked)60 lb (27.3 kg)

高(H) x 寬(W) x 深(D) = 17.2 x 43.2 x 47 cm
